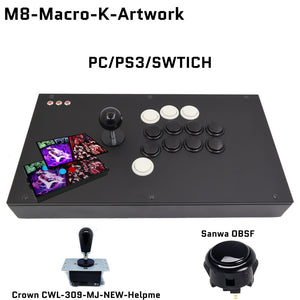

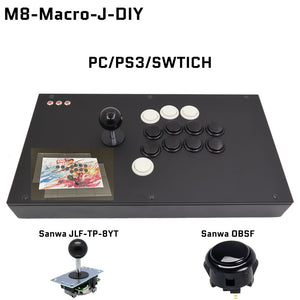

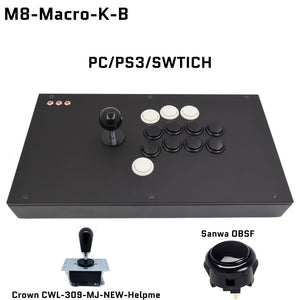

FightBox M8 Macro Recording Arcade Joystick Game Controller For PC/PS3/Switch
FightBox M8 has a Sanwa JLF-TP-8YT Joystick and 8 Sanwa OBSF-30 buttons, same as traditional joystick, but it has 4 additional Sanwa OBSF-30 buttons with macro recording function, user can customize these 4 buttons by the record button. The FightBox M8 is compatible with PC/PS3/Switch by using Zero Delay Arcade USB Encoder.
Black matte acrylic panel

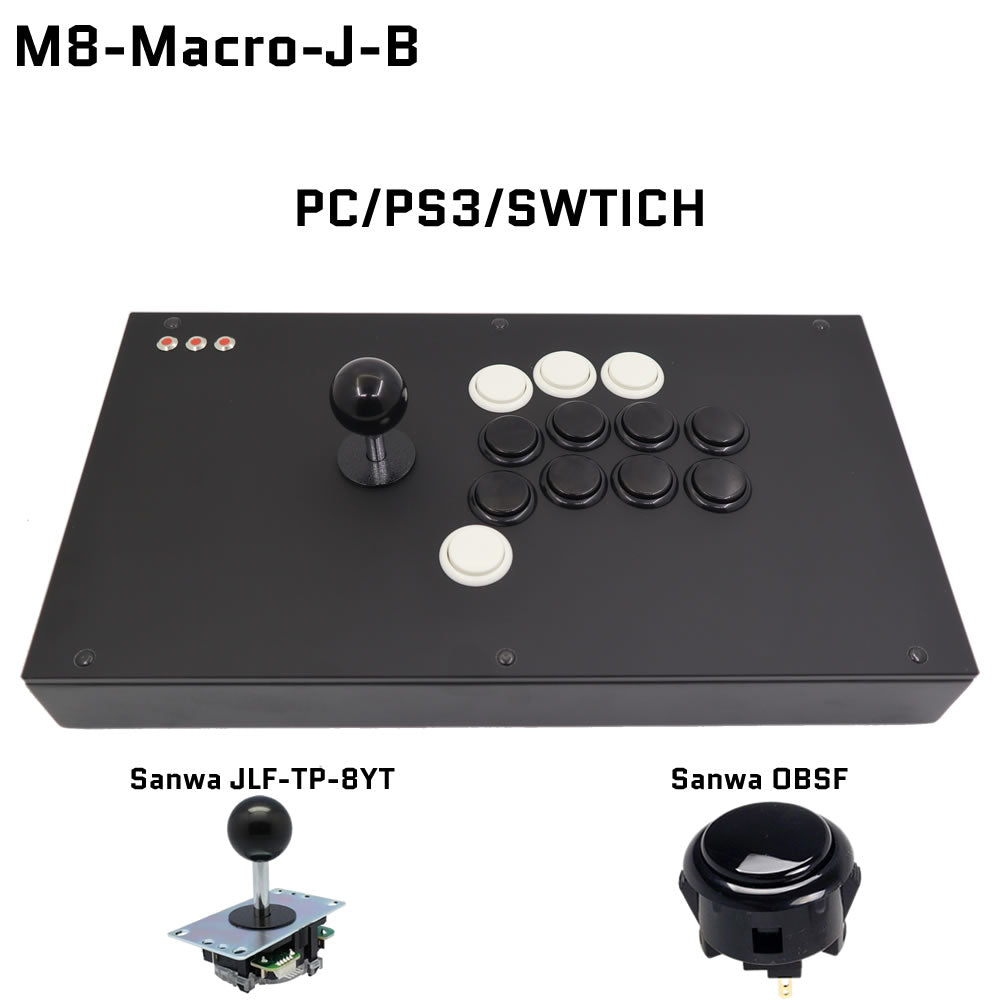

Sanwa JLF-TP-8YT Joystick

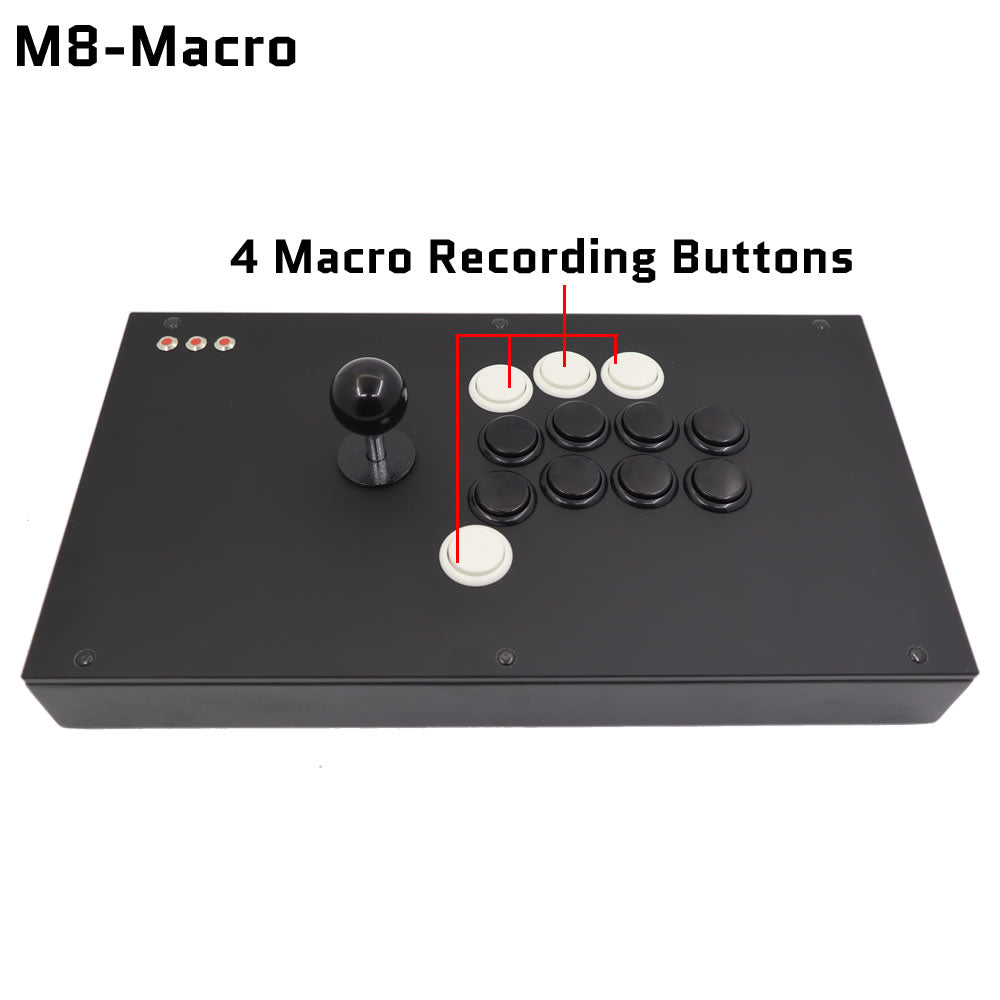

4 push buttons as macro buttons
8 push buttons as action buttons
All of above buttons are the original Sanwa OBSF-30 buttons

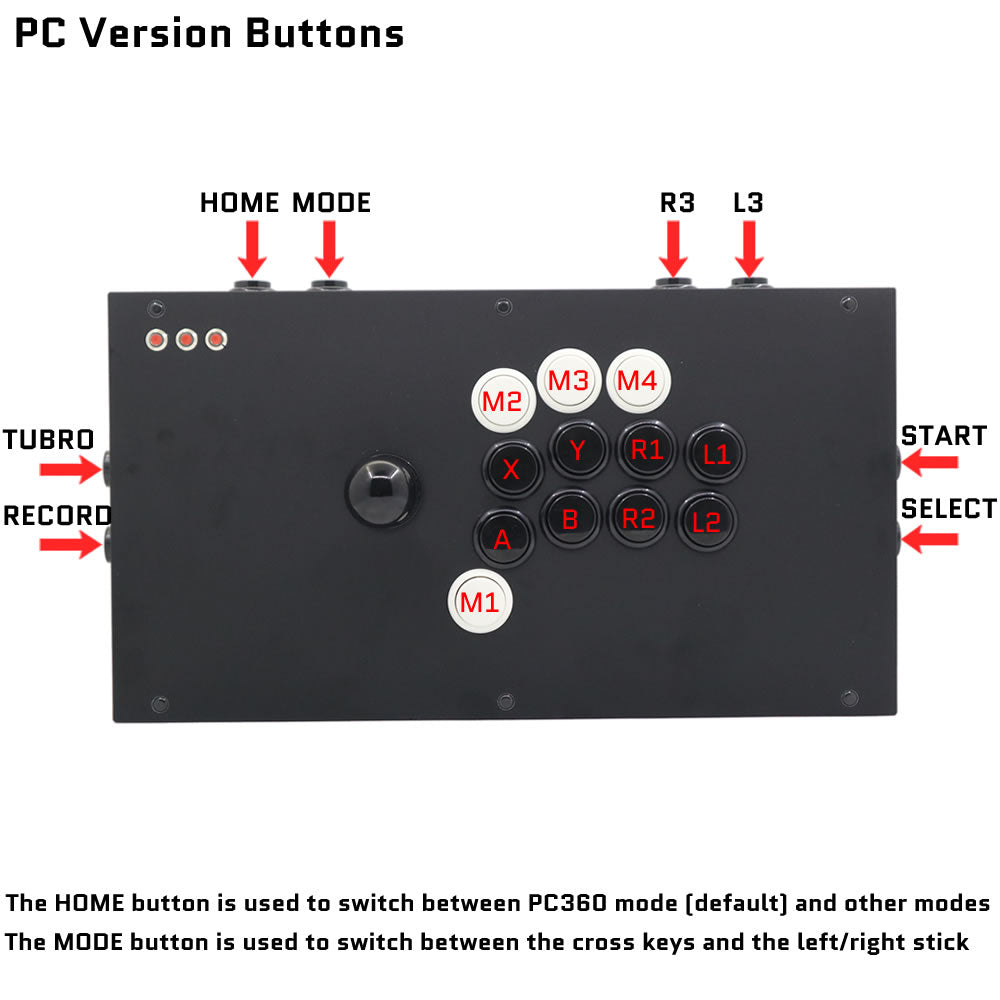

2 buttons on the left side as start and select buttons
2 buttons on the right side as record and turbo buttons
4 buttons on the back side as home and mode buttons, R3 and L3 buttons
All of above buttons are the BAOLIAN 30 buttons
Four non-slip pads at the bottom to make the joystick more stable
Zero Delay Arcade USB Encoder inside
The product support two SOCD resolution modes.
UP + DOWN = UP, LEFT + RIGHT = NEUTRAL directional cleaning, a tournament standard for all buttons Game Controller
The second input is prioritized when collisions occur.
SOCD Mode switching is achieved through jumpers on the internal control board.

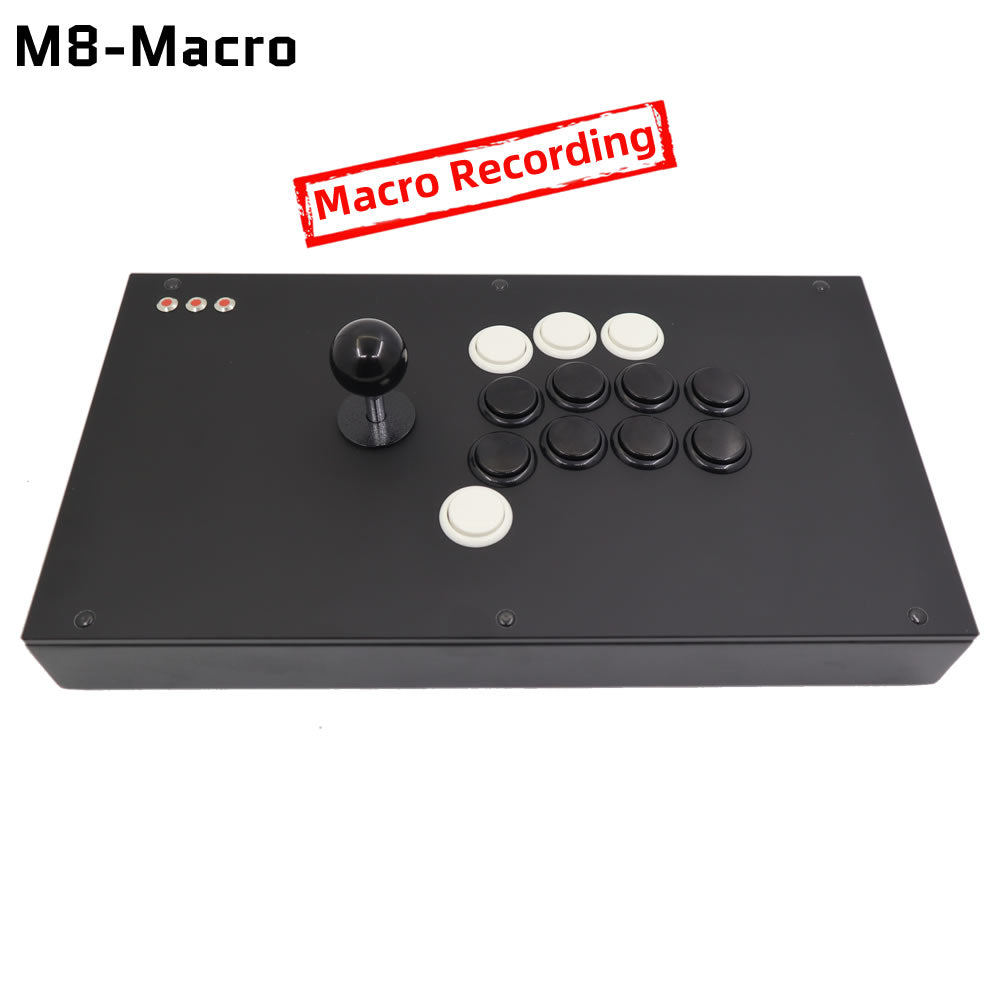

Macro recording function:
Press and hold the RECORD button to enter the recording state LED1 LED2 LED3 are all on, release the RECORD button
To start recording, press any one or more combination of 4 arrow keys + 8 attack keys + SELECT + START + R3 + L3 keys
Press the button M1 or M2 or M3 or M4 that needs to record these contents
The save success indicator flashes twice.
Press the button M1 or M2 or M3 or M4 to play the contents recorded.
Cable type: USB (Type B to Type A)
Cable length: about 3m
Case Material: Metal
Panel Material: Black Matte Acrylic

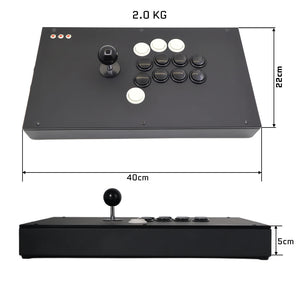

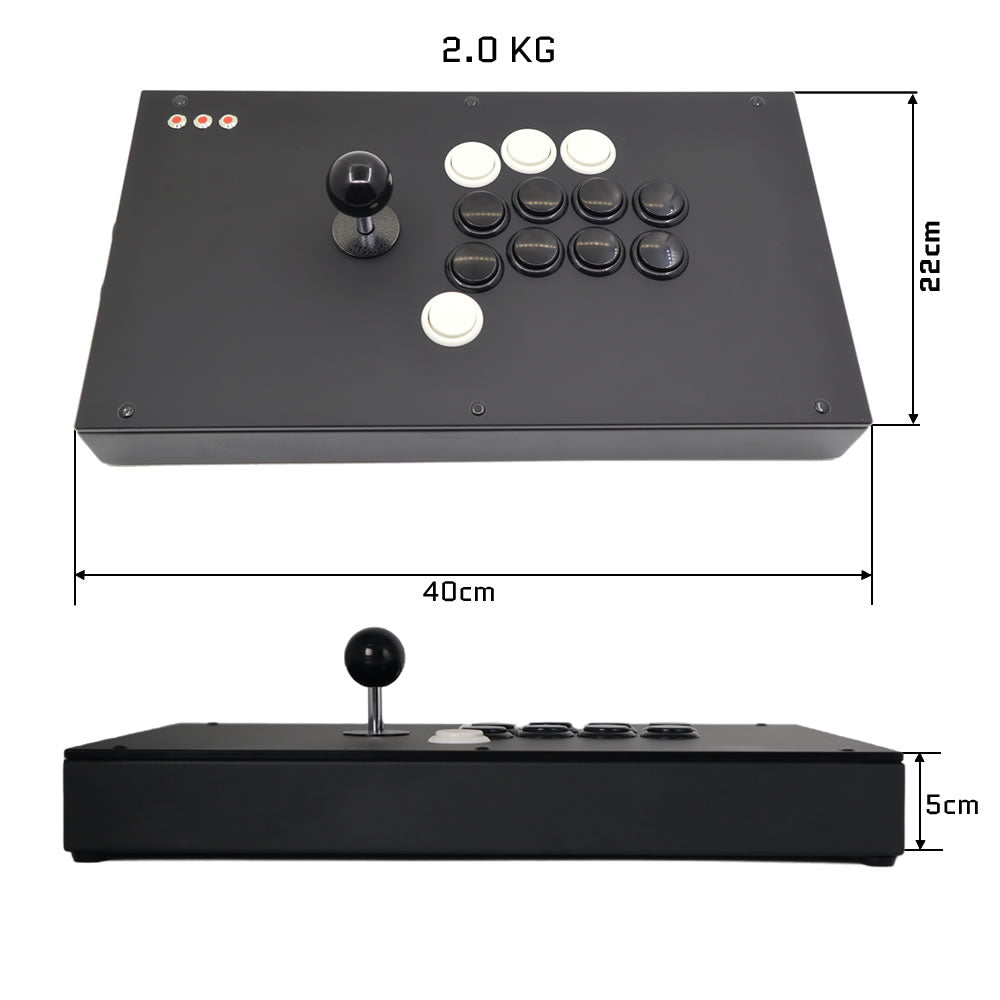

Panel Size: 40x22cm
Product Height: 4.5cm
Product Weight: 1.96kg
1 x FightBox M8 Macro Recording Arcade Joystick Game Controller For PC/PS3/Switch
