FightBox M7 Arcade Game Controller for PC/PS/XBOX/SWITCH

FightBox M7 has a Sanwa JLF-TP-8YT joystick and mechanical keyboard directional keys(4 Cherry MX Black key switches)  on the left side of the joystick, both of them act as directional control functions at the same time. There are 8 Sanwa OBSF-30 buttons for the action buttons on the right side of the controller. You can use the joystick and these 8 buttons to combine to a traditional joystick to play game, or you can use the full button combination to play the game. 2 up keys(1 Cherry MX Black key and 1 Sanwa OBSF-30 button) can be more flexible to adapt to more different game operations.

Features:

Black matte acrylic panel

Sanwa JLF-TP-8YT Joystick + RAC-J300S Detachable Arcade Joystick Shaft

It employs a quick coupling mechanism which make it super easy to attach and detach joystick shaft.

4 Cherry MX Black key switches as directional keys

1 push buttons as directional UP key

8 push buttons as action buttons

All of above buttons are the original Sanwa OBSF-24 and Sanwa OBSF-30 buttons

2 buttons on the side as start and select buttons

4 buttons on the back of case as function buttons

Six non-slip pads at the bottom to make the joystick more stable

SOCD Supported, UP + DOWN = UP, LEFT + RIGHT = NEUTRAL directional cleaning, a tournament standard for all buttons Game Controller

The PC version M7-PC

Zero Delay Arcade USB Encoder inside

Compatible with PC/PS3/SWITCH

2 buttons on the side as start and select buttons

4 buttons on the back of case as Home, Mode, R3,L3

The XBOX version M7-XBOX

The Brook XB FIGHTING BOARD inside

Support Xbox Series X|S, Xbox One, Xbox 360, Xbox Original and PC

The PS4 version M7-PS

The Brook Fighting Board For PS4 inside

Compatible with PS5/PS4/PS3/PC

It supports playing PS4 games on PS5 but native PS5 games not supported

The PS5 version M7-PS5

The Brook Fighting Board and and UFB-UP5 inside

Compatible with PS5/PS4/PS3/PC

It supports playing native PS5 Fighting games on PS5

The Universal version M7-UV

The Brook Universal Fighting Board inside

Compatible with XBOX SERIES X|S, Xbox One, Xbox 360, PS4, PS3, Wii U PC, Switch,  NEOGEO mini, PS Classic and MD mini

It supports playing PS4 games on PS5 but native PS5 games not supported

The Universal PS5 version M7-UFB-UP5

The Brook Universal Fighting Board and UFB-UP5 inside

Compatible with XBOX SERIES X|S, Xbox One, Xbox 360, PS5, PS4, PS3, Wii U PC, Switch,  NEOGEO mini, PS Classic and MD mini

It supports playing native PS5 Fighting games on PS5

For M7-PS, M7-PS5, M7-UV, M7-UFB-UP5

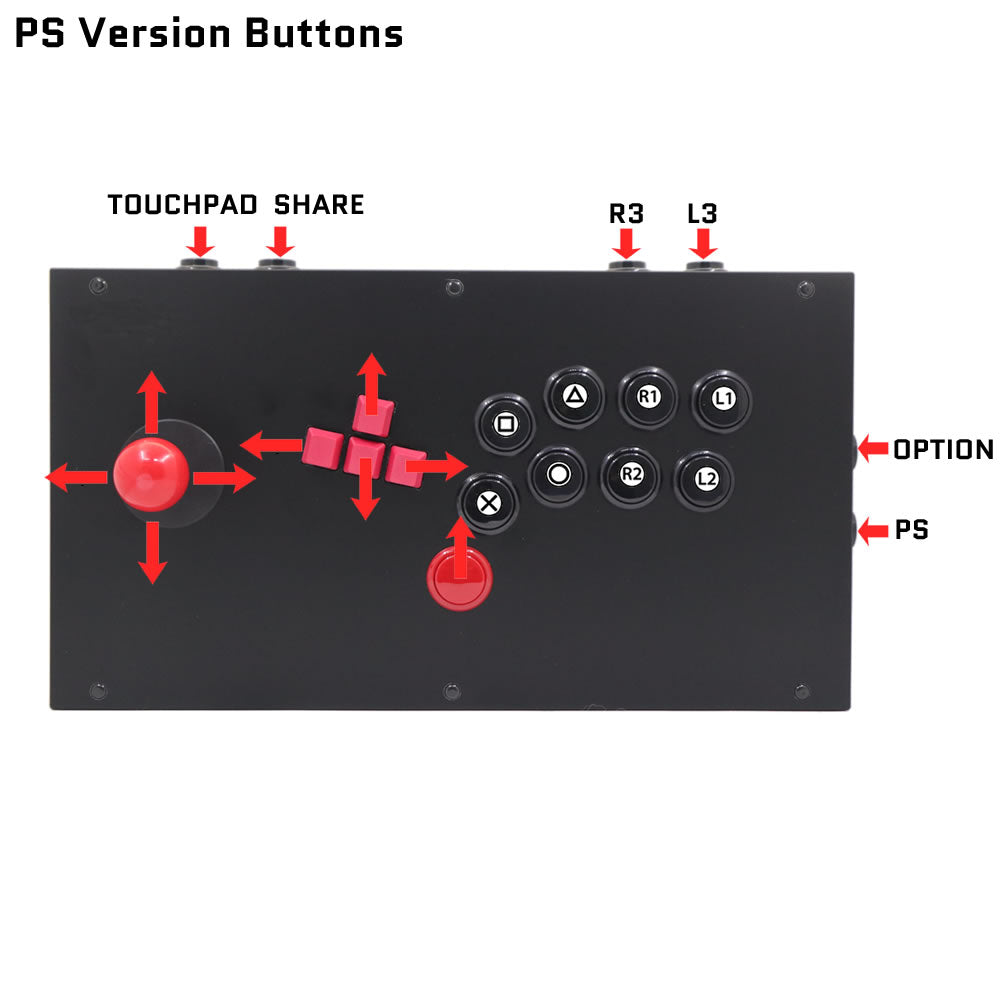

4 buttons on the back of case as R3, L3, Share, Touchpad buttons

Direct connection to the game console does not require a controller, completely replacing all functions of the controller

Specification:

Cable type: USB (Type B to Type A)

Cable length: about 3m

Case Material: Metal

Panel Material: Black Matte Acrylic

Panel Size: 40x22cm

Product Height: 4.5cm

Product Weight: 1.96kg

About SOCD

PC Version support three SOCD modes:

Neutral SOCD mode (UP + DOWN = NEUTRAL, LEFT + RIGHT = NEUTRAL)

Upper priority SOCD mode (UP + DOWN = UP, LEFT + RIGHT = NEUTRAL)

Last win SOCD mode(UP + DOWN = DOWN, LEFT + RIGHT = RIGHT, DOWN + UP = UP, RIGHT + LEFT = LEFT)

You hold down the MODE and START keys, and then press the LEFT arrow key to switch to the last win SOCD mode.

You hold down the MODE and START keys, and then press the UP arrow key to switch to the upper priority SOCD mode.

You hold down the MODE and START keys, then press the DOWN arrow keys to switch to neutral SOCD mode.

Other Version(PS,PS5,XBOX,UV,UFB-UP5) need to go to the official website of Brook to update the latest firmware, support multiple SOCD modes, key combination switching.

For all version, Upper priority SOCD mode as default.

Package Includes:

1 x FightBox M7 Arcade Game Controller for PC/PS/XBOX/SWITCH
