FightBox M7 Joystick and Keyboard Button Leverless Arcade Game Controller





FightBox M7 has a Sanwa JLF-TP-8YT joystick and mechanical keyboard directional keys(4 Cherry MX Black key switches) on the left side of the joystick, both of them act as directional control functions at the same time. There are 8 Sanwa OBSF-30 buttons for the action buttons on the right side of the controller. You can use the joystick and these 8 buttons to combine to a traditional joystick to play game, or you can use the full button combination to play the game. 2 up keys(1 Cherry MX Black key and 1 Sanwa OBSF-30 button) can be more flexible to adapt to more different game operations.
Features:
Sanwa JLF-TP-8YT Joystick + RAC-J300S Detachable Arcade Joystick Shaft
It employs a quick coupling mechanism which make it super easy to attach and detach joystick shaft.
4 Cherry MX Black key switches as directional keys
1 push buttons as directional UP key
8 push buttons as action buttons
All of above buttons are the original Sanwa OBSF-24 and Sanwa OBSF-30 buttons
USB interface(Type B to Type A) , more stable connection and data transmission
Four non-slip pads at the bottom to make the joystick more stable
SOCD Supported, support a tournament standard for All Button Leverless Game Controller, Up priority SOCD mode as default directional cleaning

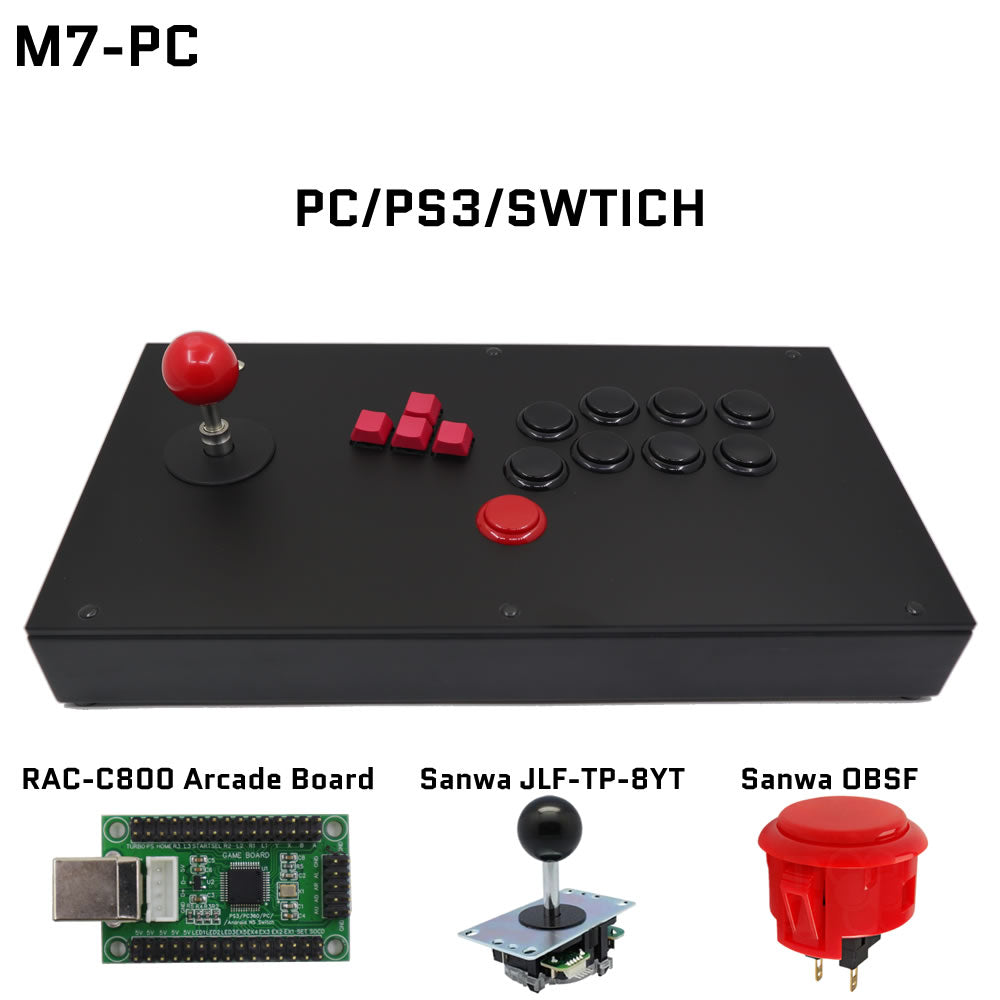

The PC version M7-PC
RAC-C800 Zero Delay Arcade Encoder inside
Compatible with PC/PS3/SWITCH

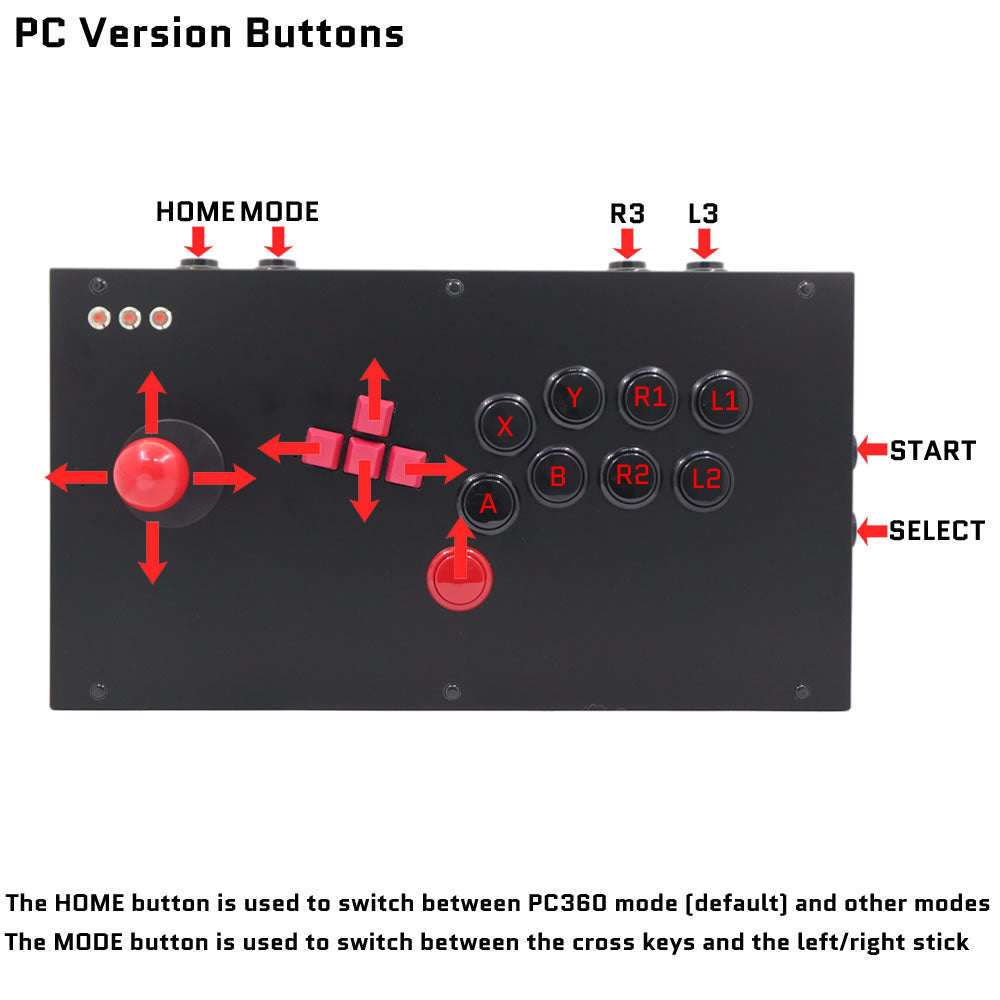

2 buttons on the side as start and select buttons
4 buttons on the back of case as Home, Mode, R3,L3

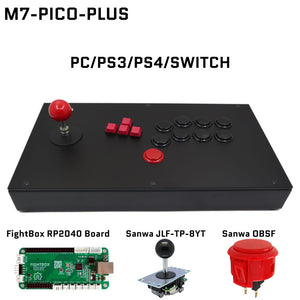

The PICO-PLUS version M7-PICO-PLUS
FightBox RP2040 Advanced Breakout Board inside
Compatible with PC/PS3/PS4/SWITCH
2 buttons on the side as start and select buttons
4 buttons on the back of case as Home, TouchPad, R3,L3

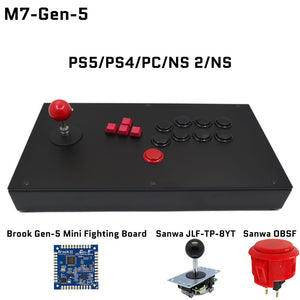

The Gen-5 version M7-Gen-5
Brook Gen-5/Gen-5 Mini Fighting Board inside
Compatible with PS5/PS4/PS3/PC/SWITCH 2/SWITCH

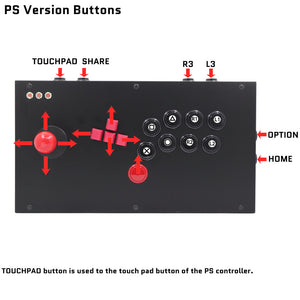

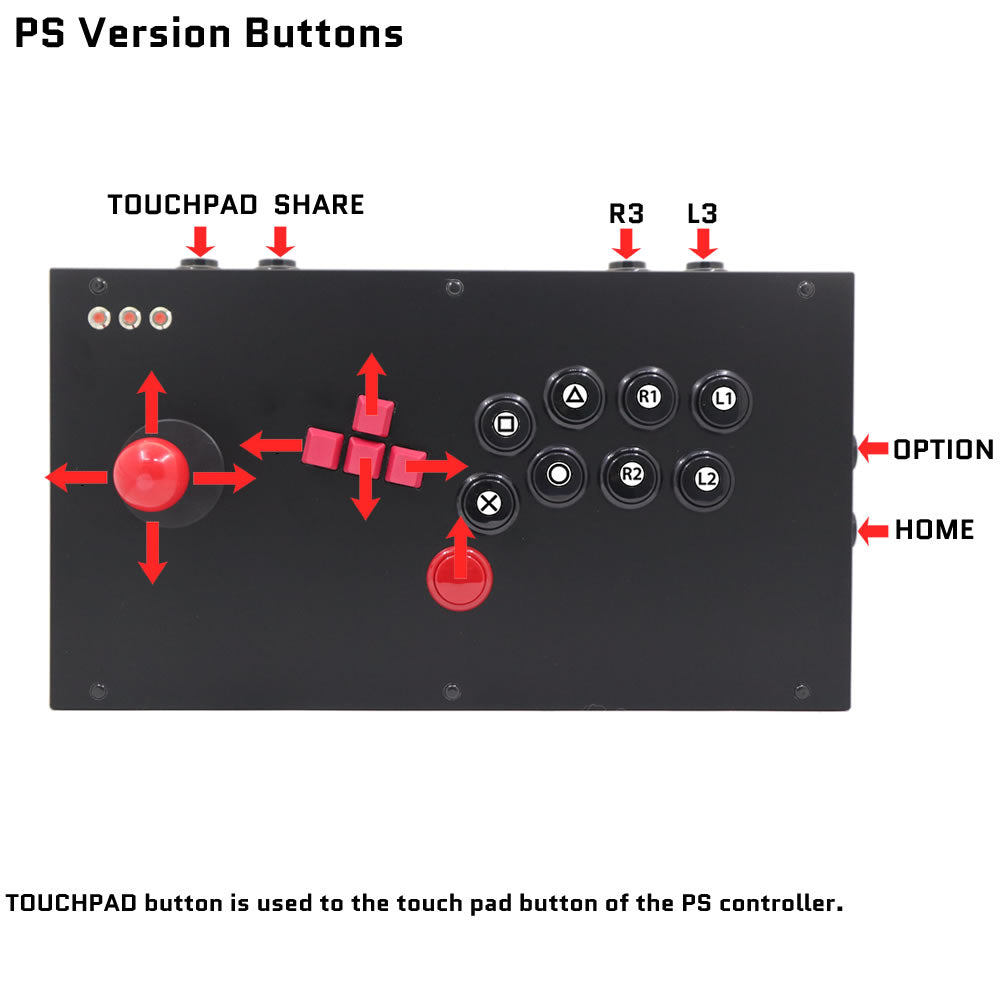

2 buttons on the side as Option and PS buttons
4 buttons on the back of case as Touchpad, Share, R3, L3

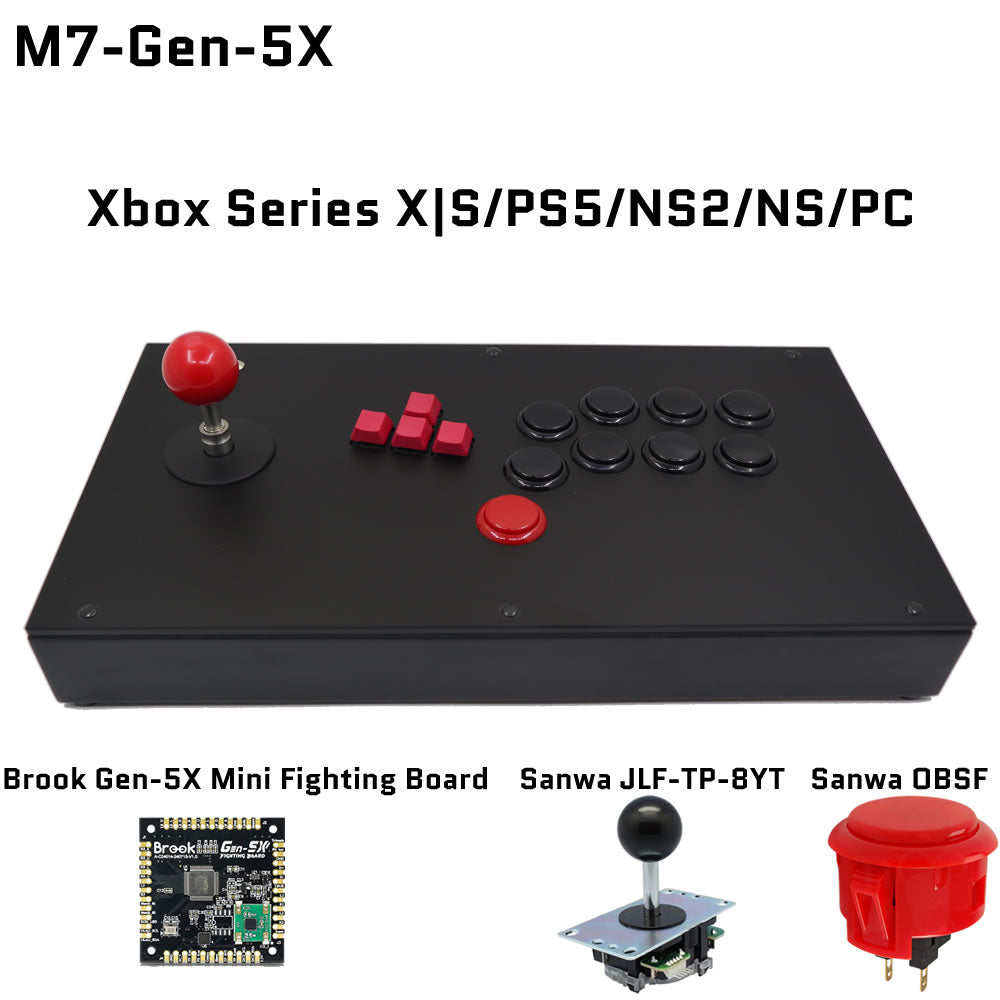

The Gen-5X version M7-Gen-5X
Brook Gen-5X/Gen-5X Mini Fighting Board inside
Compatible with PS5/Xbox Series X|S/SWITCH 2/SWITCH/PC
2 buttons on the side as Option and PS buttons
4 buttons on the back of case as Touchpad, Share, R3, L3
Specification:
Cable type: USB (Type B to Type A)
Cable length: About 3m
Case Material: Metal
Panel Material: Black Matte Acrylic
Panel Size: 40x22cm
Product Height: 4.5cm
Product Weight: 1.96kg
Package Includes:
1 x FightBox M7 Joystick and Keyboard Button Leverless Arcade Game Controller for PC/PS/XBOX/SWITCH
Please note: The three indicator lights in the upper left corner have been removed in the latest version due to their limited functionality and low usage frequency.
