FightBox B3 All Button Leverless Arcade Game Controller for PC/SWITCH/PS3/PS4/PS5
The FightBox B3 is using all-acrylic ultra-thin design, the thickness is less than 2cm. It has 4x24mm buttons(Cherry MX Black key switches) on the left side of the controller, instead of the traditional analog joystick, arranged according to the keyboard arrow keys WASD, with 8x24mm buttons(Cherry MX Black key switches) for the action buttons on the right side of the controller. The additional key can be set to either the up key or the L3 key via the internal jumper, and the L3 key can be used to set key combinations in the game. 2 up keys(2 Cherry MX Black key switches) can be more flexible to adapt to more different game operations. Using hot-swappable technology, it is convenient for users to replace their favorite mechanical key switches.
Features:

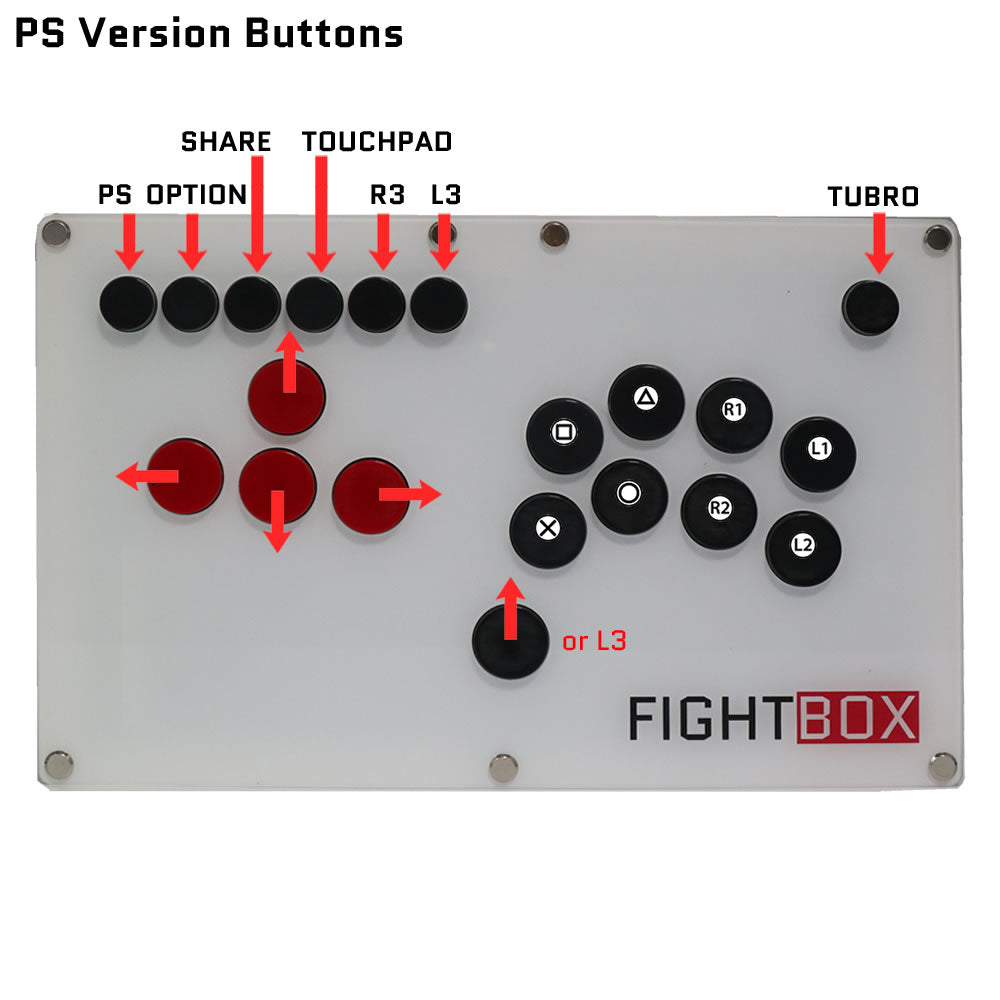

4 push buttons as directional keys
8 push buttons as action buttons
1 additional key as UP or L3 button(This can be accomplished with jumpers on the PCB).
7 buttons on the top of the panel as function buttons
All of above buttons are hot-swappable Cherry MX Black key switches
USB interface(Type B to Type A) , more stable connection and data transmission
SOCD Supported, support a tournament standard for All Button Leverless Game Controller, Up priority SOCD mode as default directional cleaning
The PC version B3-PC
RAC-C800 Zero Delay Arcade Encoder inside
Compatible with PC/PS3/SWITCH
The PS4 version B3-PS4
The Brook Fighting Board PS3/PS4 For PS4 inside
Compatible with PS5/PS4/PS3/PC
It supports playing PS4 games on PS5 but native PS5 games not supported
The PS5 version B3-PS5
The Brook P5 mini Fighting Board inside
Compatible with PS5/PS4/PS3/PC
It supports playing native PS5 Fighting games on PS5
The PC version B3-PC-DIY
RAC-C800 Zero Delay Arcade Encoder inside
Compatible with PC/PS3/SWITCH
The PS4 version B3-PS4-DIY
The Brook Fighting Board PS3/PS4 For PS4 inside
Compatible with PS5/PS4/PS3/PC
It supports playing PS4 games on PS5 but native PS5 games not supported
The PS5 version B3-PS5-DIY
The Brook P5 mini Fighting Board inside
Compatible with PS5/PS4/PS3/PC
It supports playing native PS5 Fighting games on PS5
For B3-PS4, B3-PS5
Direct connection to the game console does not require a controller, completely replacing all functions of the controller
Specification:
Cable type: USB (Type B to Type A)
Cable length: About 3m
Material: Acrylic
Panel Size: 30x18.8cm
Product Height: 1.9cm
Product Weight: 1.2kg
About DIY Panel:
DIY Panel require customers to have a certain amount of hands-on ability.
Customers can print color patterns on A3 paper and put it in the middle of the top two panels.
The default kit does not include the A3 paper,
A3 paper template file: https://fightboxarcade.com/blogs/panel-templates
DIY tutorial video, https://www.youtube.com/watch?v=P9mVgLV0If0
About SOCD
PC Version support three SOCD modes:
Neutral SOCD mode (UP + DOWN = NEUTRAL, LEFT + RIGHT = NEUTRAL)
Upper priority SOCD mode (UP + DOWN = UP, LEFT + RIGHT = NEUTRAL)
Last win SOCD mode(UP + DOWN = DOWN, LEFT + RIGHT = RIGHT, DOWN + UP = UP, RIGHT + LEFT = LEFT)
Other Version(PS4,PS5) need to go to the official website of Brook to update the latest firmware, support multiple SOCD modes, key combination switching.
For all version, Upper priority SOCD mode as default.
Package Includes:
1 x FightBox B3 All Button Leverless Arcade Game Controller for PC/SWITCH/PS3/PS4/PS5
